AQ6-MFG 99

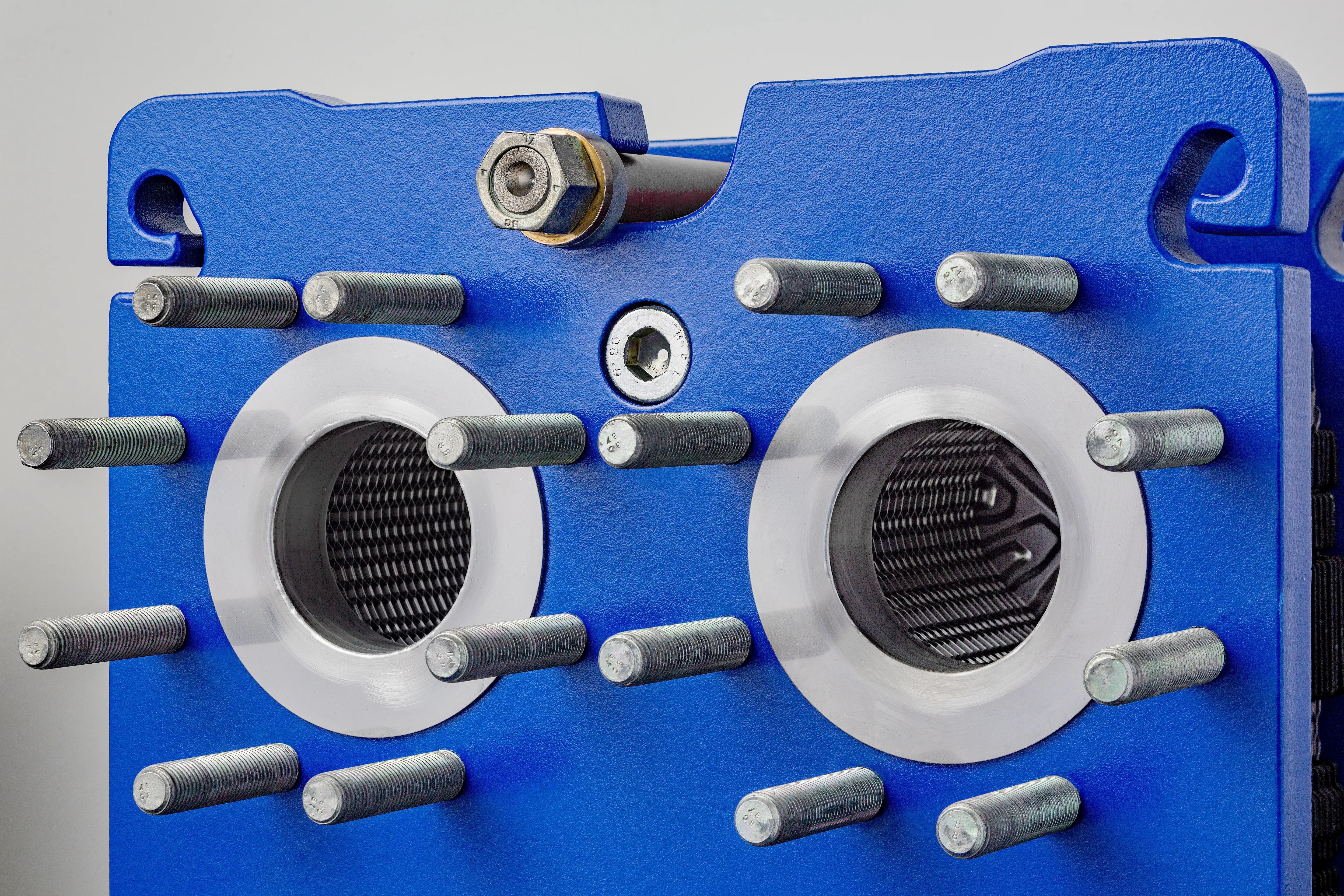

Representative image. Actual product may differ.

AQ6-MFG 99

Lead time on request

High energy efficiency – low operating cost
Flexible configuration – heat transfer area can be modified
Easy to install – compact design
High serviceability – easy to open for inspection and cleaning and
easy to clean by CIP
Access to Alfa Laval’s global service network

About

Alfa Laval AlfaQ™ is AHRI Certified® through the Liquid to Liquid Heat Exchangers (LLHE) Certification Program which ensures thermal performance in accordance with the product specifications.

Suitable for HVAC applications, this model is available with a large selection of plate and gasket types.

Documentation

AQ line - AQ4L, AQ6, AQ6L, AQ6T, AQ8, AQ8S, AQ8T, AQ10, AQ10T (en)PDF

AQ6 Product leaflet (en)PDF

AQ6 (en)PDF

Technical details

Heat source

Boiler

Capacity

10000 kBtu/h

Temp. primary side

180 → 85 °F

Temp. secondary side

82 → 100 °F

Max. pressure drop

10 psi

Flow rate primary side

105500 lb/h

Flow rate secondary side

556400 lb/h

Connection primary side

FLANGE SHEET 150# NPS 6 SS

Connection secondary side

FLANGE SHEET 150# NPS 6 SS
