M6M-44M

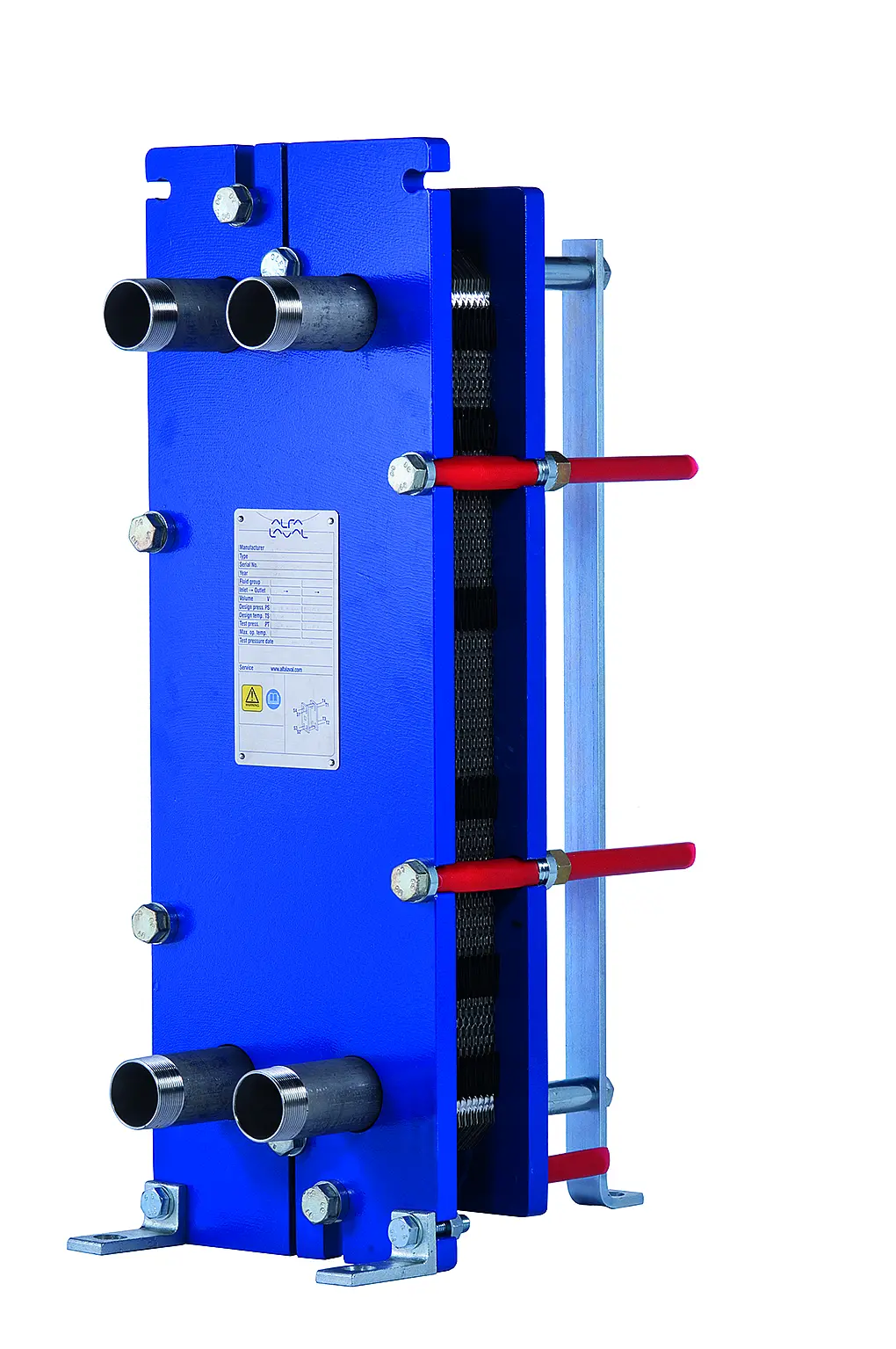

Representative image. Actual product may differ.

M6M-44M

Lead time on request

High energy efficiency – low operating cost
Flexible configuration – heat transfer area can be modified
Easy to install – compact design
High serviceability – easy to open for inspection and cleaning and easy to clean by CIP
Access to Alfa Laval’s global service network

About

Alfa Laval Industrial line is a wide product range that is used in virtually all types of industry. Suitable for a wide range applications, this model is available with a large selection of plate and gasket types. In addition to normal single plate configuration, this model is also available with double wall plates. Double wall plates are used as an extra precaution to avoid intermixing of fluids.

Technical details

Heat source

Boiler

Capacity (kW)

300 kW

Temp primary side (°C)

80 → 60 °C

Temp. secondary side (°C)

55 → 70 °C

Max. Pressure Drop (kPa)

20 kPa

Weight (kg)

- kg

Flow rate primary side (m³/h)

13,3 m3/h

Flow rate primary side (GPM)

13,3 GPM

Flow rate secondary side (m³/h)

17,5 m3/h

Flow rate secondary side (GPM)

17,5 GPM

Connection primary side

ISO G 2"

Connection secondary side

ISO G 2"

Depth (mm)

- mm

Width (mm)

320 mm

Height (mm)

920 mm

Length (mm)

- mm
